V430-F Series

Auto Focus Multi Code Reader

V430-F Series

Smallest in class* (*Fixed mount multi code readers with 1.2 Mpix or more. Based on Omron investigation in March 2018.)

(Unit: mm)

Code Readers

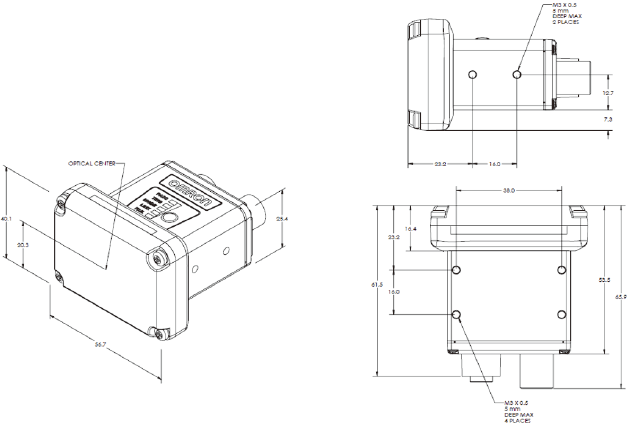

V430-F

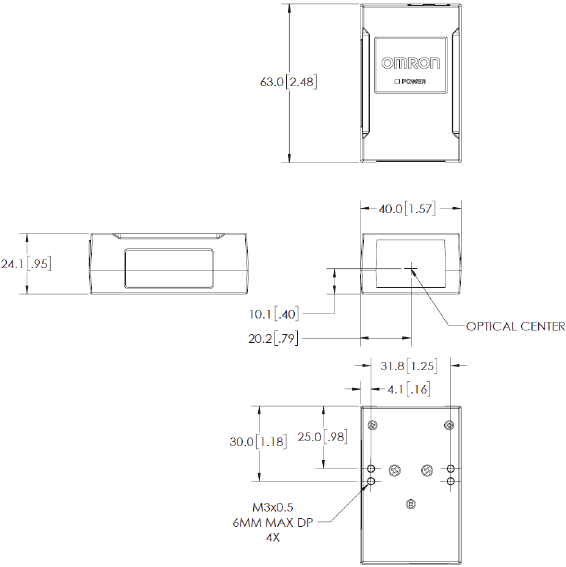

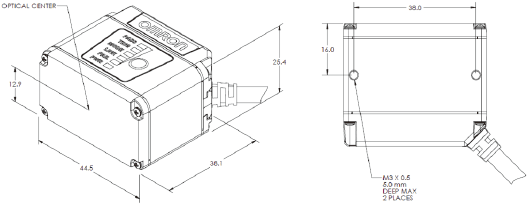

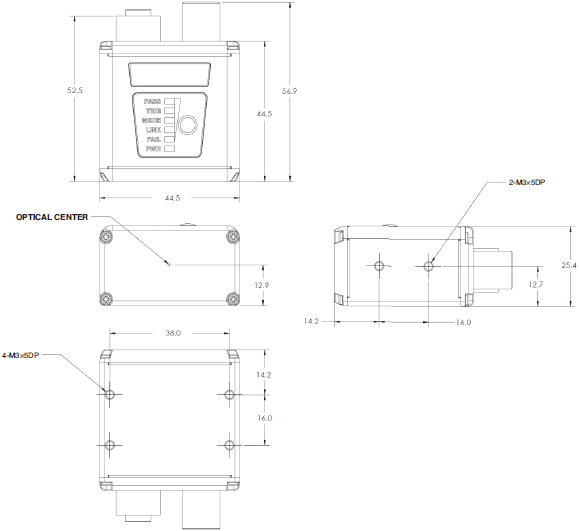

V430-F Series Dimensions 1

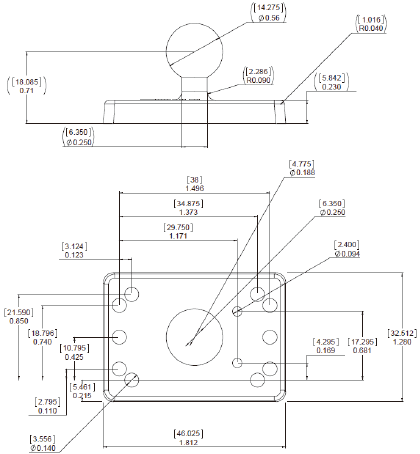

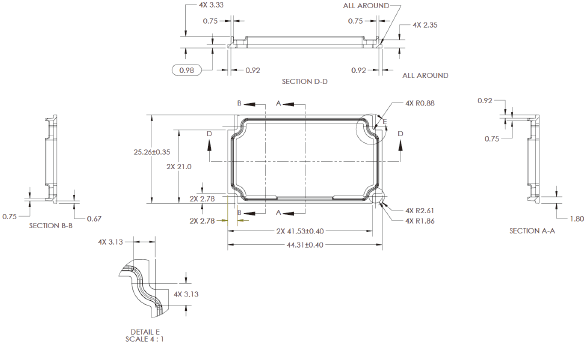

Mounting Brackets

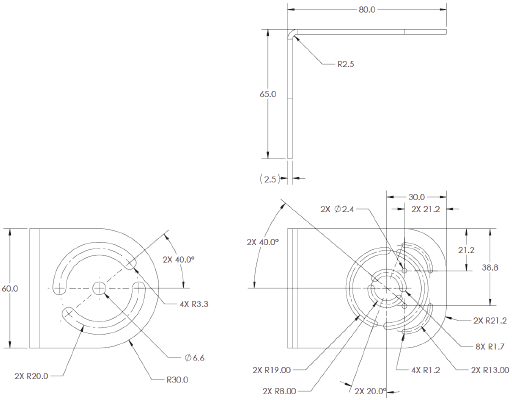

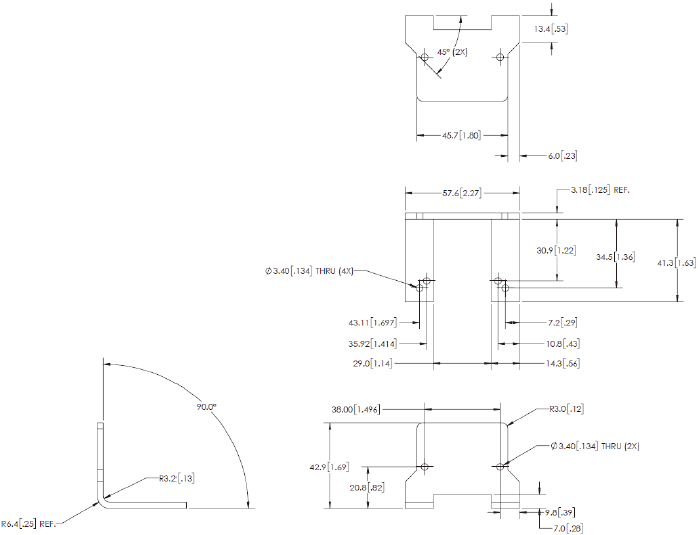

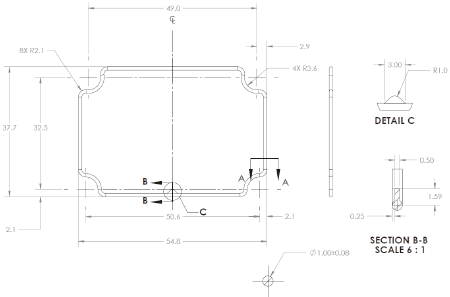

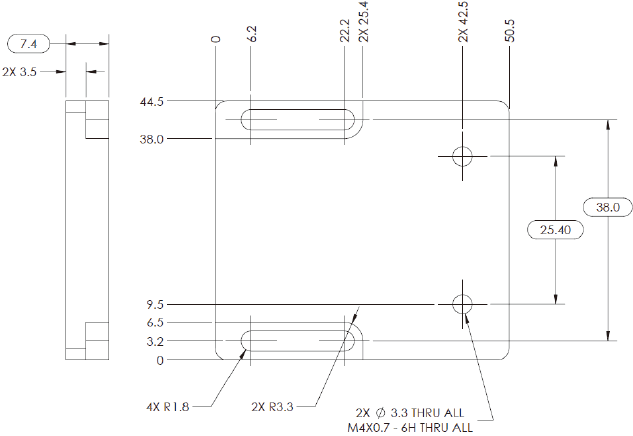

L Bracket

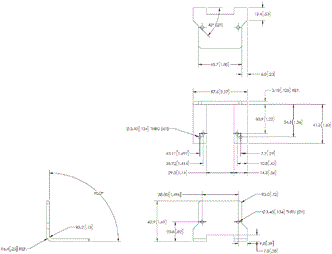

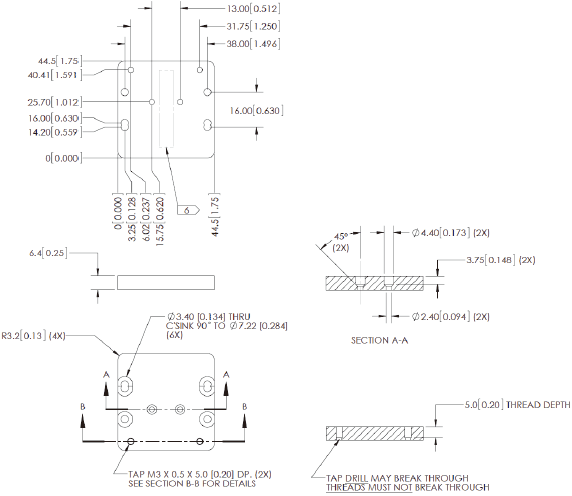

V430-AM0

V430-F Series Dimensions 2

Material: SUS304
Accessories: Phillips-HeadScrews (M3×6) (2)
                       Washer (2)

The following accessories are not used with the V430-F Series:
Phillips-Head Screws (M2×6) (2)
Washers for M2 Screws (2)

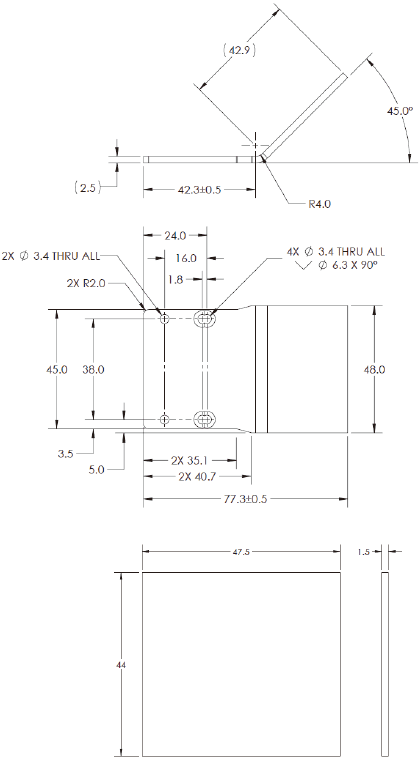

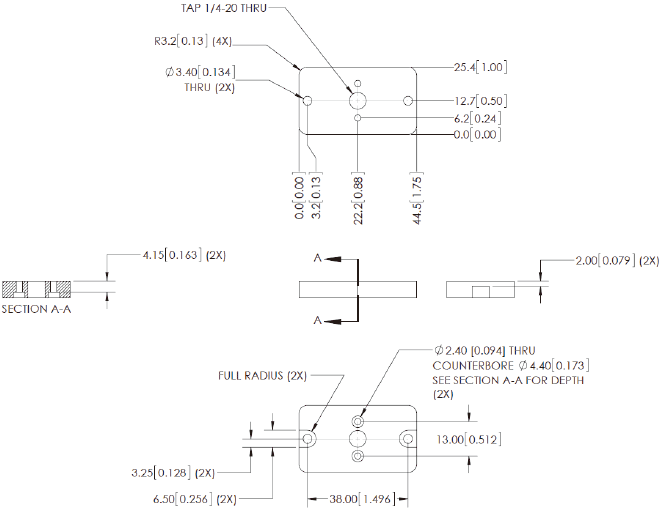

Mounting Block

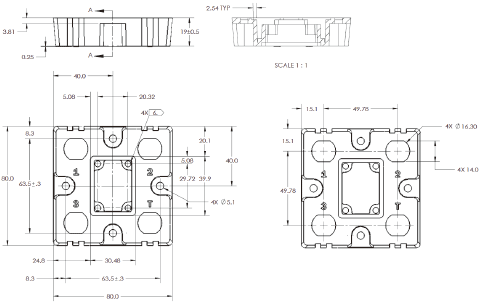

V430-AM1

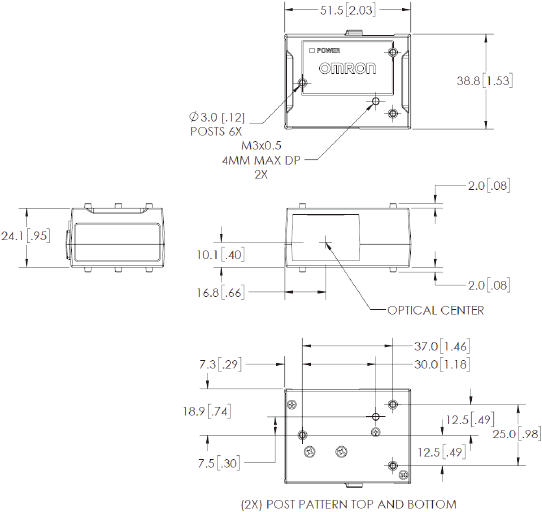

V430-F Series Dimensions 4

Material: Aluminum alloy
Accessories: Cap Screws (M3×6) (2)

The following accessories are not used with the V430-F Series:
Cap Screws (M2×8) (2)

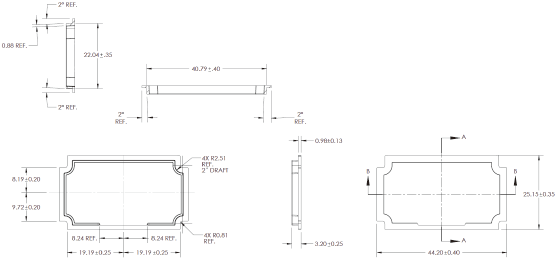

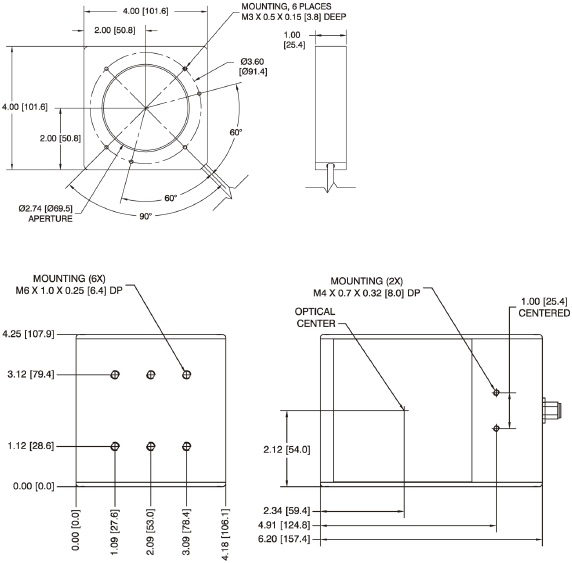

Right Angle Mirror
V430-AF3

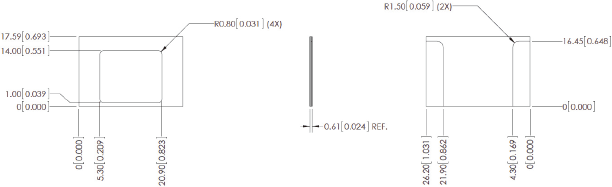

V430-F Series Dimensions 6

Material: Bracket: Aluminum

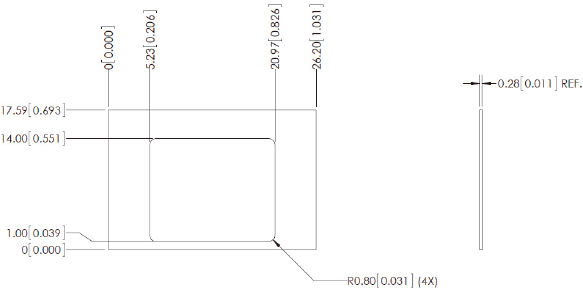

               Mirror

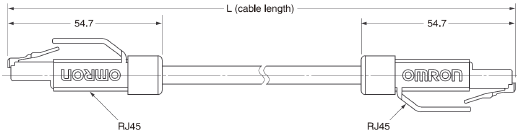

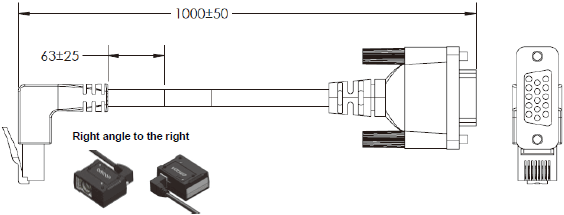

Ethernet Cables

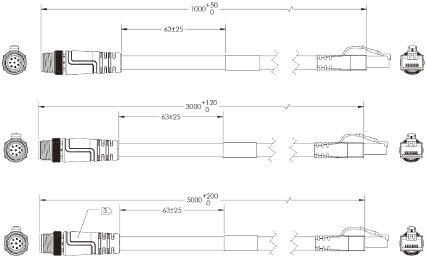

Cordset, M12 8-Pin Plug to RJ45 Ethernet
3 m Straight
V430-WE-3M

V430-F Series Dimensions 8

Cordset, M12 8-Pin Plug to RJ45 Ethernet

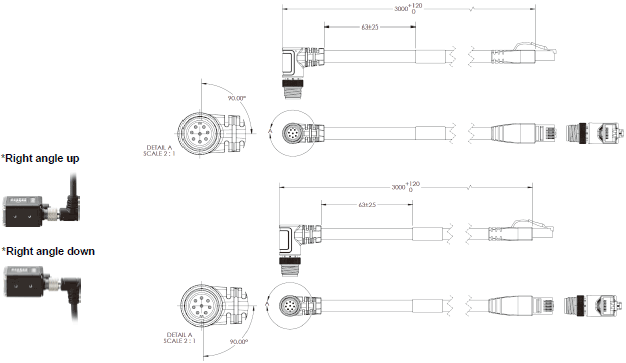

3 m Right angle down
V430-WELD-3M

V430-F Series Dimensions 9

Cordset, M12 8-Pin Plug to RJ45 Ethernet
3 m Right angle up
V430-WELU-3M

V430-F Series Dimensions 10

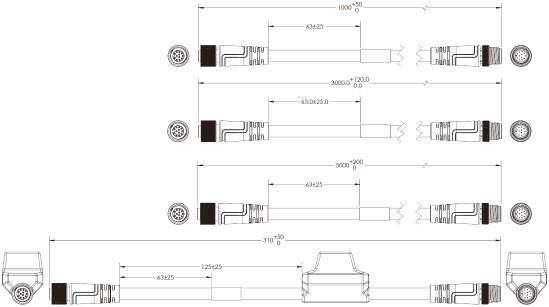

Cordset, M12 8-Pin Plug to RJ45 Ethernet
5 m Straight
V430-WE-5M

V430-F Series Dimensions 11

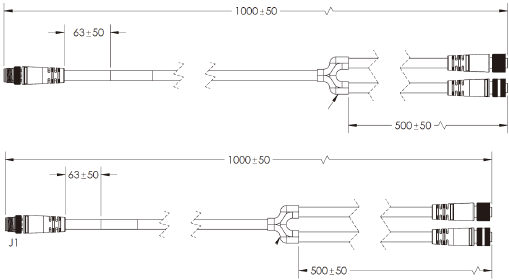

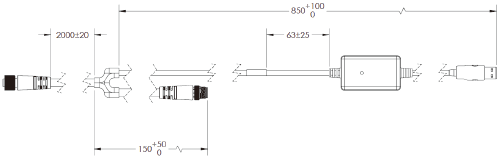

I/O Cables

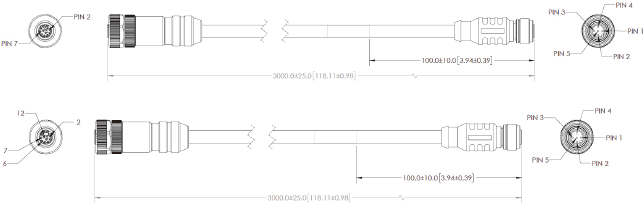

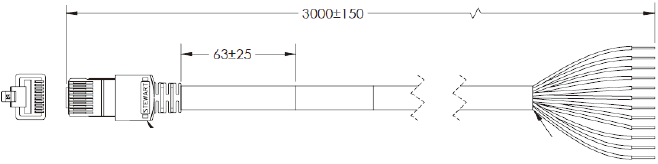

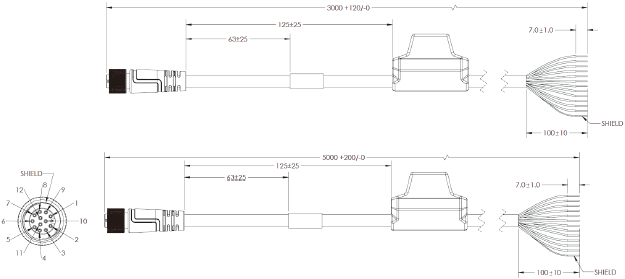

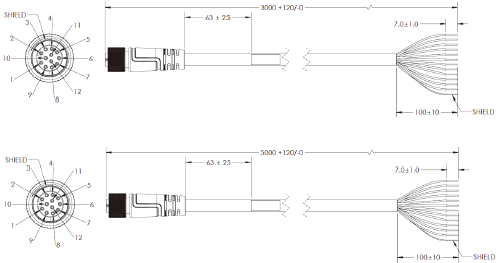

Cordset, M12 12-Pin Socket to Flying Leads
3 m Straight
V430-W8-3M

V430-F Series Dimensions 12

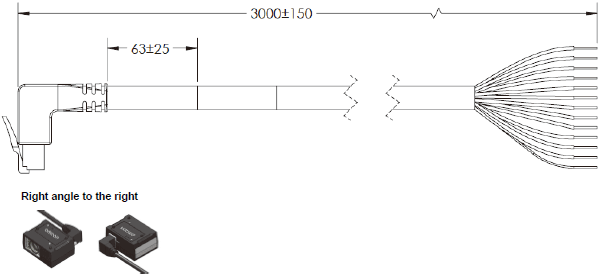

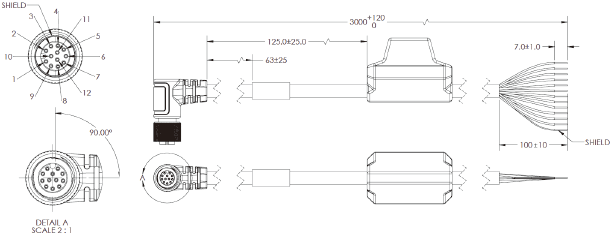

Cordset, M12 12-Pin Socket to Flying Leads

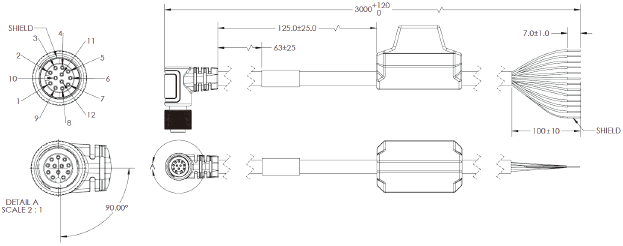

3 m Right angle down
V430-W8LD-3M

V430-F Series Dimensions 13

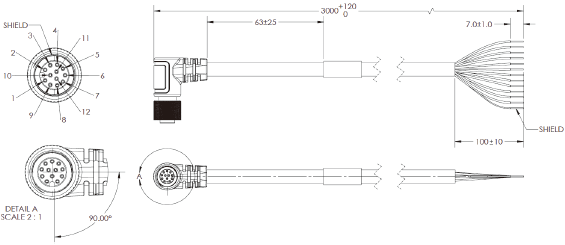

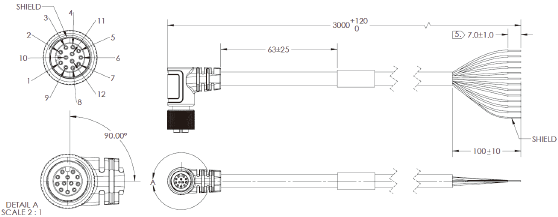

Cordset, M12 12-Pin Socket to Flying Leads
3 m Right angle up
V430-W8LU-3M

V430-F Series Dimensions 14

Cordset, M12 12-Pin Socket to Flying Leads
5 m Straight
V430-W8-5M

V430-F Series Dimensions 15

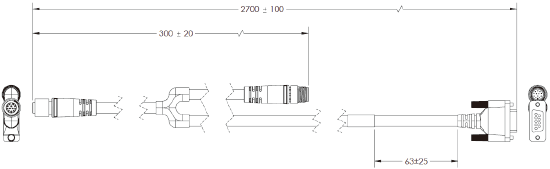

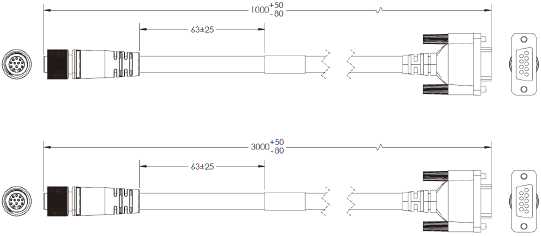

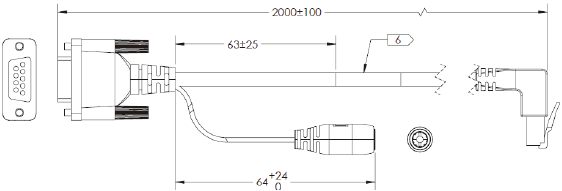

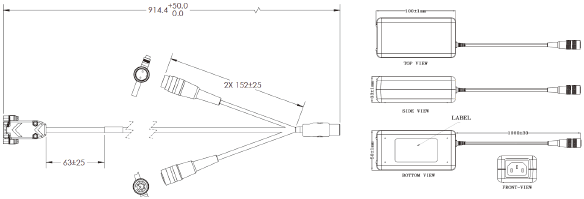

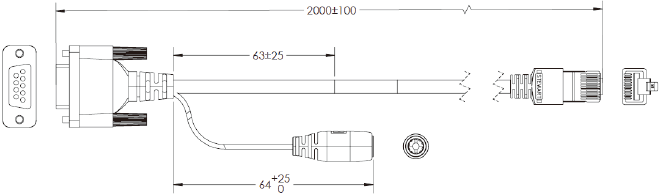

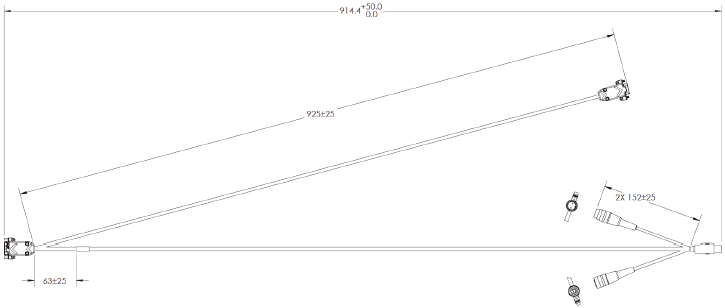

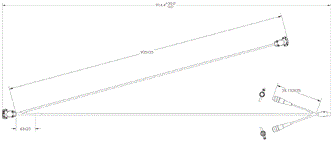

Cordset, M12 12-Pin Socket to DB9 Socket with M12 12-Pin Plug

3 m Straight
V430-W2-3M

V430-F Series Dimensions 16
