V430-F Series

Auto Focus Multi Code Reader

V430-F Series

Smallest in class* (*Fixed mount multi code readers with 1.2 Mpix or more. Based on Omron investigation in March 2018.)

Model V430-F000[]50C V430-F000[]12M V430-F[][][]M03M
Applicable
codes *1
Bar code Code 39, Code 128, BC412, ITF (Interleaved 2 of 5), EAN/UPC, Codabar, Code
93, Pharmacode, PLANET, POSTNET, Japanese Post, Australian Post, Royal
Mail, Intelligent Mail, KIX, UPU, GS1 Databar (Composite)
2D code DataMatrix (ECC000-ECC200), GS1 DataMatrix, QR Code, Micro QR Code,
Aztec Code, DotCode, PDF417, Micro PDF417, GS1 Databar (Stacked)
Reading
performance
*2
Number of
reading digits
No upper limit (depends on bar width and reading distance)
Aiming light Two Blue LEDs
Light source Inner LEDs: Four White and Four Red LEDs (wave length: 625 nm)
Outer LEDs:
Eight White LEDs
Outer LEDs:
Eight Red LEDs
(wave length: 617 nm)
Outer LEDs:
Eight Red LEDs
(wave length: 617 nm)
Reading distance/
Field of view
Refer to Read Ranges on catalog for detail.

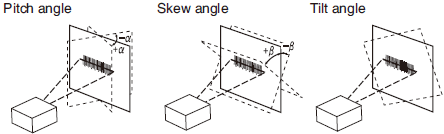

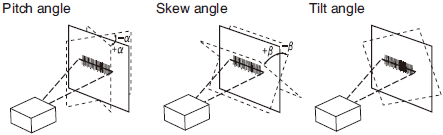

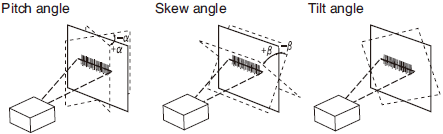

Pitch angle (α) ±30°
Skew angle (β) ±30°
Tilt angle (γ) ±180°
Image capture
device
Effective pixels 2592 (H) x 1944 (V) 1280 (H) x 960 (V) 752 (H) x 480 (V)
Color/
Monochrome
Color CMOS Monochrome CMOS Monochrome CMOS
Shutter Method Rolling shutter Global shutter Global shutter
Frame Rate 5 fps 42 fps 60 fps
Shutter Speed 50 us to 100 ms
Image logging FTP
Reading trigger External trigger (edge, level), Trigger by command (Ethernet, RS-232C)
I/O
specifications
Input signals Trigger, New Master: 4.5 to 28 V rated (10 mA at 28 VDC)
Output signals Output1, Output2, Output3: 1 to 28 V rated (100 mA Max. at 24 VDC)
Communication
specification
RS-232C, Ethernet TCP/IP, EtherNet/IP™
Ethernet
specifications
100BASE-TX/10BASE-T
Indicator Lamps PASS (Green), TRIG (Amber), MODE (Amber), LINK (Amber), FAIL (Red), PWR (Green)
Power voltage 5.0 to 30.0 VDC (including ripple)
Consumption current 0.18 A (typ.) (at 24 VDC)
Environmental
specifications
Ambient
temperature range
Operating: 0 to 40°C, Storage: -50 to +75°C (with no icing or condensation)
Ambient
humidity range
Operating: 5 to 85%RH, Storage: 5 to 85%RH (with no condensation)
Ambient atmosphere No corrosive gases
Vibration Resistance
(destruction)
10 to 55 Hz, double amplitude: 0.35 mm, X/Y/Z directions, 10 cycles/axis
Shock resistance
(destruction)
150 m/s2, 3 times in each X/Y/Z directions
Degree of protection IEC 60529 IP67
Weight Main body only Approx. 68 g
Packing weight Approx. 174 g (including packing)
Dimensions Main body Dimension 44.5 (W) × 44.5 (D) × 25.4 (H) mm
Packing Dimension 170 (W) × 117 (D) × 86 (H) mm
Accessories Instruction manual ("Read me first"), Compliance Sheet (CE)
LED class Risk Group Exempt (IEC 62471-1)
Safety standards EN61326-1: 2013
FCC Part 15, Subpart B (Class A)
KC CISPR 11, IEC 61000-4-2: 2008
UL60950-1
RCM, EAC
Material Case Aluminum diecast, alumite (black)
Reading window Acrylic

*1. These are the code types supported based on Omron’s read capability validation standard. It is recommended that the customer do its own validation in its actual work environment.
*2. Unless otherwise specified, the reading performance is defined with center of field of view, angle R=∞.
